主要特性和功能
出色的硬件性能可以盡可能地提升您的設計性能，包括優異的相位噪聲和雜散特征
利用優異的 ACPR 和輸出功率，驅動功率放大器并表征非線性特性
經工廠均衡的 160 MHz 射頻帶寬，可以更好地測試寬帶器件
利用 Signal Studio 軟件，可以縮短生成 LTE、WLAN 和 GNSS 等信號所需的時間
3 年校準周期和全面的自我維護解決方案確保降低您的擁有成本

性能水平 ◆◆◆◆◇◇
1 GHz 時的輸出功率 -144 dBm 至 +26 dBm
1 GHz 時，20 kHz 頻偏處的相位噪聲 -146 dBc/Hz
頻率轉換 ≤ 800 μs
1 GHz 時的諧波 <-35 dBc
IQ 內部/外部調制帶寬 160 MHz 至 200 MHz
1 GHz 時的非諧波 -96 dBc
掃描模式
列表
步進
基帶發生器模式 波形回放和實時
軟件——通用
模擬 I/Q 輸入
I/Q 波形
多音，NPR
噪聲（AWGN）
相位噪聲減損
脈沖
脈沖串發生器
AM, FM, PM
ASK
FSK, MSK
MATLAB
PSK
QAM
軟件——蜂窩/無線連通性
藍牙
1xEV-DO
802.11 WLAN
802.16 WiMAX
EDGE Evolution
GPRS/EGPRS
GSM/EDGE
HSPA, HSPA+
LTE
NADC, PDC
PHS, DECT
TD-SCDMA
TETRA, APCO
W-CDMA
cdma2000
cdmaOne
軟件——音頻/視頻廣播
調幅立體聲，RDS/RBDS
ATSC, ATSC-M/H
CMMB
DAB, DAB+, DMB-Audio
DOCSIS DS
DTMB
DVB-C/S/S2
DVB-T/H/T2
ISDB-T/TSB/TB/Tmm
J.83 Annex A/B/C
T-DMB
軟件——檢測/定位/跟蹤/導航
伽利略
GNSS 波形
GLONASS
GPS
波形回放存儲器 1024 Msa
1 GHz 時的頻率調制最大偏移 4 MHz
100 kHz 頻偏時的頻率調制率 直流至 7 MHz
普通模式下的相位調制最大偏移 0.5 rad 至 8 rad
高帶寬模式下的相位調制最大偏移 0.05 rad 至 0.8 rad
幅度調制最大深度 100%
幅度調制率
0 至 50 kHz

可用應用 是
矢量 是
選件和升級
選件
Frequency Range
Connector Configuration
General Performance Features
Vector System Features
Analog Modulation
Vector Firmware Applications
Additional Features
Calibration Documentation
Waveform 5-pack Licenses
Waveform 50-pack Licenses
Accessories
Documentation
Signal Creation Software
保修、校準和服務
售后升級
選件
了解詳細信息: 查看配置指南

Frequency Range
N5182B-503 9 kHz 至 3 GHz 頻率范圍
N5182B-506 9 kHz 至 6 GHz 頻率范圍
Connector Configuration
N5182B-1EM 將所有連接器移至后面板
General Performance Features
N5182B-UNZ 快速切換
N5182B-UNX 低相位噪聲
N5182B-UNY 增強的超低相位噪聲性能
N5182B-1EA 大輸出功率
N5182B-1EQ 小功率，< -110 dBm
N5182B-1ER 靈活的參考輸入（1 - 50 MHz）
N5182B-302 Avionics License
N5182B-099 期限延長的許可證密匙升級能力
Vector System Features
N5182B-UNV 增強的動態范圍
N5182B-660 升級基帶信號發生器，增加實時能力
N5182B-657 基帶信號發生器的射頻帶寬從 80 MHz 升級至 160 MHz
N5182B-656 ARB 基帶信號發生器（80 MHz 射頻帶寬，32 Msa）
N5182B-1EL 差分 I/Q 輸出
N5182B-023 Upgrade baseband generator memory from 32 Msa to 1 Gsa
N5182B-022 Upgrade baseband generator memory from 32 Msa to 512 Msa
N5182B-UN7 內置比特誤碼率分析儀，固定永久許可證
Analog Modulation
N5182B-303 多功能函數發生器
N5182B-320 脈沖序列發生器、固定永久許可證
N5182B-UNT 調幅、調頻、相位調制
N5182B-UNW 窄脈沖調制
Vector Firmware Applications
N5182B-004 數字輸入端口可與 N5102A 連接
N5182B-003 數字輸出端口可與 N5102A 連接
N5182B-432 相位噪聲減損
N5182B-431 定制設計調制
N5182B-430 多音頻和雙音頻
N5182B-403 經過校準的 AWGN
Additional Features
N5182B-006 儀器安全特性和可拆卸存儲卡
N5182B-009 Internal solid state memory
N5182B-012 用于相位相干的 LO 輸入/輸出
Calibration Documentation
N5182B-UK6 Commercial calibration certificate with test data
N5182B-A6J ANSI Z540-1-1994 校準
N5182B-AMG 校準 + 不確定度 + 保護頻段（認證）
Waveform 5-pack Licenses
N5182B-229 Waveform license 5-pack9
N5182B-228 Waveform license 5-pack8
N5182B-227 Waveform license 5-pack7
N5182B-226 Waveform license 5-pack6
N5182B-225 Waveform license 5-pack5
N5182B-224 Waveform license 5-pack4
N5182B-223 Waveform license 5-pack3
N5182B-222 Waveform license 5-pack2
N5182B-221 5 種波形一組的波形許可證
Waveform 50-pack Licenses
N5182B-259 Waveform license 50-pack10
N5182B-258 Waveform license 50-pack9
N5182B-257 Waveform license 50-pack8
N5182B-256 Waveform license 50-pack7
N5182B-255 Waveform license 50-pack6
N5182B-254 Waveform license 50-pack5
N5182B-253 Waveform license 50-pack4
N5182B-252 Waveform license 50-pack3
N5182B-251 Waveform license 50-pack2
N5182B-250 50 種波形一組的波形許可證
Accessories
N5182B-AXT Hard transit case
1CN106A Handle kit 88.1mm H (2U) - two front handles,  Palette 2015
1CP104A Rack mount flange and handle kit 88.1mm H (2U) - brackets, handles, hole plugs, Palette 2015
1CR112A Rack Slide Kit, Mounting lengths 279.4-406.4mm, Palette 2015
1CM110A Rack mount flange kit 88.1mm H (2U) - two flange brackets, four hole plugs, Palette 2015
1CM010A Rackmount Flange Kit 88.1mm H (2U) - Two Flange Brackets, Four Hole Plugs
1CN006A 把手套件 88.1 毫米（高）（2U）－－兩個前把手
1CP004A Rackmount Flange and Handle Kit 88.1mm H (2U) - Brackets, Handles, Hole Plugs
1CR012A Rack Slide Kit, Mounting lengths 279.4-406.4mm
N5182B-CVR Front panel cover
Documentation
N5182B-ABJ Japan - Japanese printed users guide
Signal Creation Software
N6171A MATLAB 軟件
N7600B Signal Studio for W-CDMA/HSPA+
N7601B Signal Studio for cdma2000/1xEV-DO
N7602B Signal Studio for GSM/EDGE/Evo
N7605B Signal Studio for Real-Time Fading
N7606B Signal Studio for Bluetooth
N7607B Signal Studio for DFS Radar Profiles
N7608B Signal Studio 定制調制軟件
N7609B Signal Studio for Global Navigation Satellite Systems (GNSS)
N7610B Signal Studio for Short Range Communications
N7611B Signal Studio for Broadcast Radio
N7612B Signal Studio for TD-SCDMA/HSPA
N7614B Signal Studio 功率放大器測試軟件
N7615B Signal Studio for Mobile WiMAX
N7617B 適用于 WLAN 802.11a/b/g/j/p/n/ac/ah 的 Signal Studio 軟件
N7620B Signal Studio for Pulse Building
N7621B Signal Studio for Multitone Distortion
N7623B Signal Studio for Digital Video
N7624B Signal Studio for LTE / LTE-Advanced / LTE-Advanced Pro FDD 信號生成軟件
N7625B Signal Studio for LTE / LTE-Advanced TDD 信號生成軟件
E8900-D10 USB read-only licensing dongle - FLEX10
資源中心
查看全部資料: 訪問文檔庫

關鍵產品信息
查看此產品的詳細功能。

技術指標

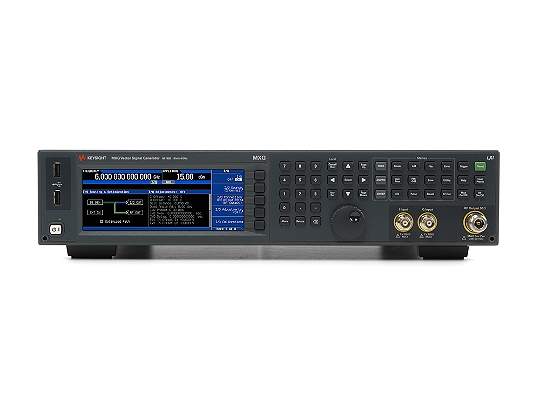

是德科技MXG X 系列信號發生器N5181B 模擬和 N5182B 矢量
手冊
X-Series Signal Generators Error Messages
X-Series Signal Generators Programming Guide
X-Series Signal Generators Programming Compatibility Guide
更多
手冊和競爭力概覽
是德科技X 系列信號發生器
立即租賃儀器，開始您的實驗
MXG X-Series Signal Generators N5181B Analog, N5182B Vector Quick Fact Sheet
選擇與配置指南
是德科技信號發生器選型指南
MXG X-Series Signal Generators N5181B Analog & N5182B Vector - Configuration Guide
演示
優酷-信號源/信號發生器
Keysight signal generators: Performing pulse generation with MATLAB
Signal impairments and playback: IQ modulation with MATLAB
支持文檔
探討此產品如何應對特定的測量挑戰。

應用說明
9 Best Practices for Optimizing Your Signal Generator – Part 2 - Application Note
Knowing the capabilities and performance of your signal generators is the first step to make accurate and consistent measurements. In this two-part Application Note, we discuss the best practices to optimize your signal generator.
9 Best Practices for Optimizing Your Signal Generator – Part 1 - Application Note
Knowing the capabilities and performance of your signal generators is the first step to make accurate and consistent measurements. In this two-part Application Note, we discuss the best practices to optimize your signal generator.
Overcoming Interference is Critical to Success in a Wireless IoT World - White Paper
This white paper highlights the importance of co-existence testing and step-by-step guide on how it can be done in the lab.
